BIGTREETECH SKR V1.3 3D Printer Board 32Bit Control TMC2208 vs SKR V1.4 Ramps 1.4 E3 DIP For Ender 3 TMC2209 - Ultimate 3D Printer Parts Comparison
From BIG TREE TECH CO.,LTD Store
US $17.23
Product Specifications
| Board can replace | MKS GEN V1.4/MKS GEN L/Ramps 1.4/Ramps 1.5/1.6 |
| Brand Name | BIQU |
| Driver working mode support | TMC2130SPI, TMC2208UART |
| Input current | 5A-15A |
| Input voltage | DC12V-DC24V |
| Item Type | Motherboard |
| Master Chip | LPC1768 & 32 Bit |
| Microprocessor | ARM cortex-M3 CPU |
| Model Number | BIGTREETRECH SKR V1.3 3D Printer Board |
| Motor drive interface | X, Y, Z, E0, E1, five (each has a reextendable interface) |
| PC communication interface | square USB, easy to plug, communication baud rate of 115200 |
| Product Name | 32-Bit SKR V1.3 Motherboard |
| Recommended software | Cura, Simplify3D, pronterface, Repetier-host, Makerware |
| Support | 2004 LCD/12864 LCD/TFT35/TFT28 Touch Screen |
| Support Auto Bed Leveling Sensor | BLTouch Sensor |
| Support Firmware | Smootheieware/Marlin2.0 |
| Support Stepper Motor Driver | TMC2208/TMC2130/TMC2100/ST820/LV8729/DRV8825/A4988 |
| Support file format | g-code |
| Supported machine architecture | XYZ, Delta, Kossel, Ultimaker, Corexy |
| TMC2130 Version | V3.0 |
| TMC2208 Version | V3.0 |
| Temperature sensor interface | TH0, TH1, TB, 3 channel 100K NTC (thermal resistance) |
| Usage | 3D Printer Board |
Product Description

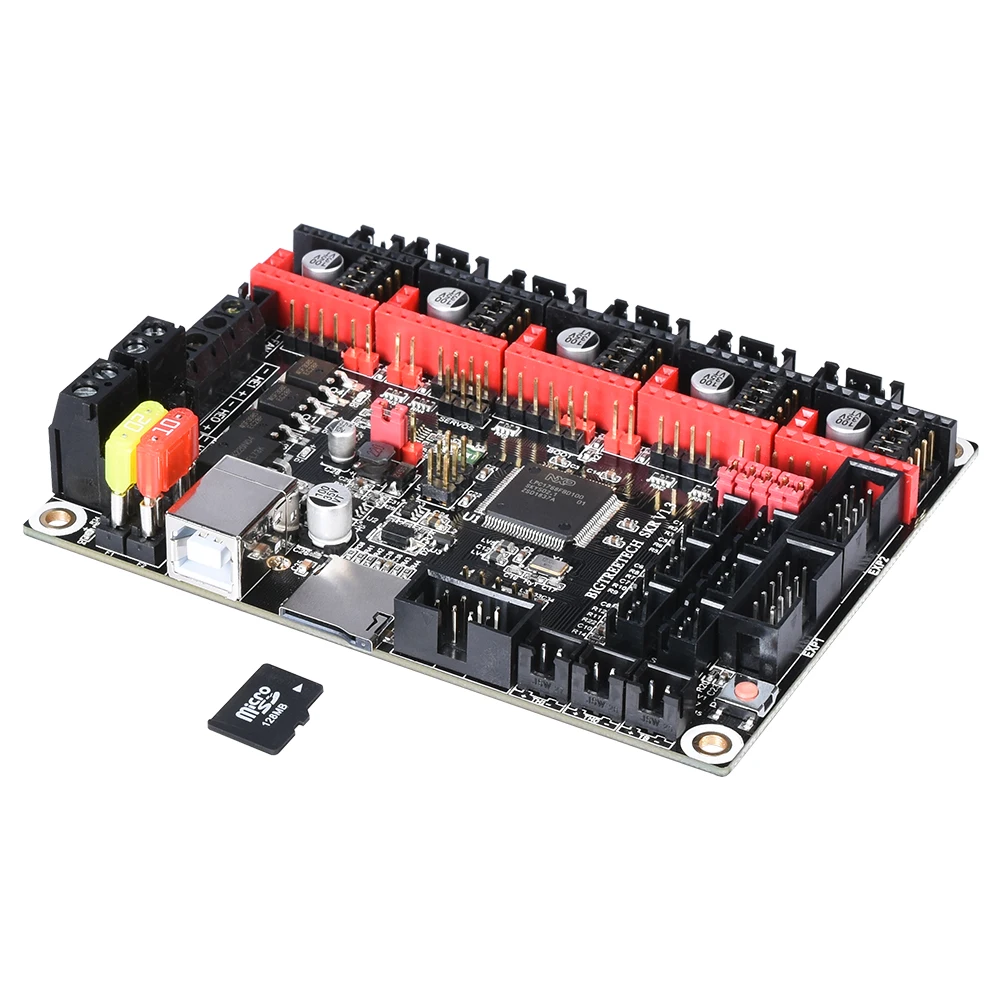

The BIGTREETECH SKR V1.3 3D Printer Board is a top-of-the-line motherboard designed for 3D printers. With its 32-bit control and TMC2208 motor drivers, this board offers exceptional performance and precision. This product is a great alternative to the SKR V1.4 Ramps 1.4 E3 DIP for Ender 3 TMC2209, offering all the features you need for a smooth printing experience.
Designed by BIQU, a trusted brand in the 3D printing industry, the BIGTREETECH SKR V1.3 3D Printer Board is a reliable choice for any 3D printer enthusiast. It is compatible with various firmware options including Smootheieware and Marlin 2.0, offering flexibility and customization for your printing needs.
The board is powered by an ARM cortex-M3 CPU, ensuring fast and efficient processing power. It operates on a wide input voltage range of DC12V-DC24V and supports a current of 5A-15A, making it suitable for a variety of 3D printer setups.
One of the standout features of this motherboard is its support for various stepper motor drivers including TMC2208, TMC2130, TMC2100, ST820, LV8729, DRV8825, and A4988. This allows you to choose the motor driver that best suits your needs and preferences.
The BIGTREETECH SKR V1.3 3D Printer Board also offers excellent compatibility with different display options. It supports 2004 LCD, 12864 LCD, TFT35, and TFT28 Touch Screen, giving you flexibility in choosing the display that fits your preference and provides the best user experience.
With its TMC2130SPI and TMC2208UART driver working modes support, this motherboard ensures smooth and precise motor control. It also features a re-extendable interface for X, Y, Z, E0, and E1 motor drives, allowing for easy connection and expansion.
In terms of temperature control, the board offers TH0, TH1, and TB interfaces for 3-channel 100K NTC temperature sensors. This allows for accurate temperature readings and precise control over your printer's extruder and heated bed.
The BIGTREETECH SKR V1.3 3D Printer Board comes with a square USB PC communication interface, making it easy to connect to your computer. It has a communication baud rate of 115200, ensuring reliable and fast data transfer.
This motherboard supports g-code file format, the industry standard for 3D printing, ensuring compatibility with a wide range of slicing software such as Cura, Simplify3D, Pronterface, Repetier-host, and Makerware.
Whether you have an XYZ, Delta, Kossel, Ultimaker, or Corexy printer architecture, this board supports them all, making it a versatile choice for different printer types.
Overall, the BIGTREETECH SKR V1.3 3D Printer Board is a powerful and feature-rich motherboard that offers excellent performance and versatility. With its compatibility, expandability, and reliability, it is a great choice for any 3D printer enthusiast looking to upgrade their printer's control system. Replace your old MKS GEN V1.4, MKS GEN L, Ramps 1.4, Ramps 1.5, or 1.6 board with the BIGTREETECH SKR V1.3 3D Printer Board and elevate your 3D printing experience to new heights.
